Water Filling Valves

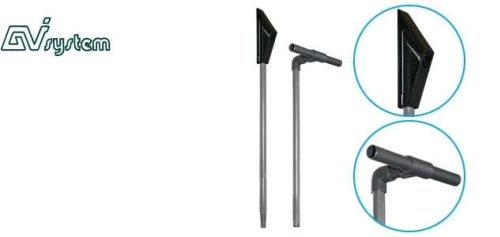

GVI Water Filling Unit “triangle”
This water filling unit is developed for mobile bench systems, where a crane lifts or lower the benches to transport them around in the greenhouse.
The water filling unit will, caused by the spring band steel bracket, change position when you lift or lower the bench and it will always go back to the original position.
GVI Water Filling Unit “triangle” is available with 4 connection possibilities:
- Connection branch for 8×10,5 and 10×12,5
- Hose branch 1/2″
- Mounting bush for 6×8 hose
- Mounting hose for 8×10,5 hose
GVI water filling unit PVC
The PVC Water filling unit is developed for mobile bench systems, where you do not lift or lower the benches, but roll them around in the greenhouse.
This water filling unit is also mounted with a spring band steel bracket, which always will make sure that the unit is in the right position.
GVI Water Filling Unit PVC is available with 4 connection possibilities:
- Connection branch for 8×10,5 and 10×12,5
- Hose branch 1/2″
- Mounting bush for 6×8 hose
- Mounting hose for 8×10,5 hose
If you have any doubt about which water filling unit for your needs, or do you want more information, please contact us by phone: +45 65 92 56 00 or email: danvan@danvan.dk
You can also take a look at our other valves HERE.
Datasheet
Features
- The Overflow Valve is developed for recirculating systems, where a certain water level is needed on tables or troughs.
- You can raise or lower the water level by adjusting the 20 mm PVC pipe, which is placed in the valve.
